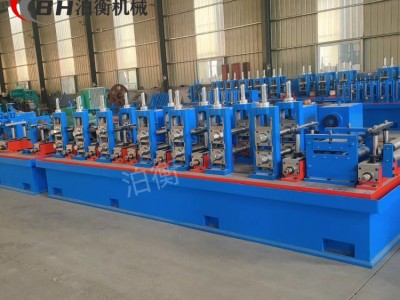

方矩管设备机组高频直缝焊管设备
Model | Tube O.D (mm) | Thickness (mm) | Square&Rectangle (mm) | Thickness (mm) | Speed (m/min) |
HG16 | φ6~16 | 0.2~0.8 | 30~120 | ||
HG20 | φ7~20 | 0.2~1.0 | 30~120 | ||
HG25 | φ9~25.4 | 0.25~1.2 | 30~120 | ||
HG32 | φ10~32 | 0.25~1.5 | 8X8~25X25 | 0.25~1.2 | 30~120 |
HG32 | 0.3~2.0 | 10X6~30X20 | 0.3~1.5 | 30~100 | |
HG40 | φ12.7~40 | 0.3~1.8 | 10X10~30X30 | 0.3~1.5 | 30~110 |
HG40 | 0.4~2.0 | 0.4~1.5 | 30~100 | ||
HG50 | φ16~50.8 | 0.4~1.5 | 12.7X12.7~40X40 | 0.4~1.2 | 30~110 |
HG50 | 0.5~2.0 | 0.5~1.5 | 30~90 | ||
HG50 | 0.6~2.5 | 0.6~2.0 | 30~80 | ||
HG63 | φ19.05~63.5 | 0.6~2.0 | 15X15~50X50 | 0.6~1.5 | 30~90 |
HG63 | 0.7~3.0 | 0.7~2.5 | 30~80 | ||
HG63 | 0.8~4.0 | 0.8~3.0 | 20~70 | ||
HG76 | φ25.4~76.2 | 0.8~2.5 | 20X20~60X60 | 0.8~2.0 | 30~90 |
HG76 | 0.8~3.5 | 0.8~3.0 | 30~80 | ||
HG76 | 0.8~4.0 | 0.8~3.5 | 20~70 | ||
HG95 | φ30~90 | 0.8~3.0 | 25X25~70X70 | 0.8~2.5 | 30~90 |
HG95 | 0.8~3.5 | 0.8~3.0 | 30~80 | ||
HG95 | 0.8~4.0 | 0.8~3.5 | 20~70 | ||
HG102 | φ31.8~101.6 | 1.0~3.0 | 25X25~80X80 | 1.0~2.5 | 30~90 |
HG102 | 1.0~3.75 | 1.0~3.0 | 30~80 | ||
HG102 | 1.0~4.25 | 1.0~3.5 | 20~70 | ||
HG114 | φ35~114.3 | 1.0~3.0 | 30X30~90X90 | 1.0~2.5 | 30~80 |
HG114 | 1.2~4.25 | 1.2~4.0 | 20~70 | ||
HG127 | φ40~127 | 1.2~3.5 | 30X30~100X100 | 1.2~3.0 | 20~70 |
HG127 | 1.5~5.0 | 1.5~4.5 | 15~60 | ||
HG140 | φ50~141.3 | 1.2~4.0 | 40X40~110X100 | 1.2~3.5 | 15~60 |
HG140 | 1.5~5.5 | 1.5~5.0 | 15~60 | ||
HG168 | φ60~168.3 | 1.5~5.0 | 50X50~130X130 | 1.5~4.5 | 15~50 |
HG168 | 2.0~6.0 | 2.0~5.5 | 15~50 | ||
HG168 | φ76.2~168.3 | 2.5~8.0 | 60X60~130X130 | 2.5~7.0 | 10~40 |
HG219 | φ89~219.1 | 2.0~6.0 | 70X70~160X160 | 2.0~5.5 | 10~40 |
HG219 | 3.0~8.0 | 3.0~7.5 | 10~40 | ||
HG219 | 4.0~10.0 | 4.0~9.0 | 10~40 | ||
HG273 | φ114.3~273 | 4.0~10.0 | 90X90~200X200 | 4.0~9.0 | 10~40 |
HG273 | 4.5~12.0 | 4.5~11.0 | 10~35 |
可用于生产穿线管、脚手架管、自行车管、健身器材管、高速公路桩管等圆形、方矩形结构用管、自来水管、暖气管等低中压流体管、以及汽车用管、锅炉用管、托辊管等高精密焊管。
