工业平板拖车概述 平板拖车是现代物流运输中好简单有效的重要工具之一。仅需叉车或牵引车作牵引运动，不耗燃料，具有承重能力强、运输效率高等优势，适用于工厂、码头、港口、仓库等场区内大宗货物周转运输。
As the most efficient carrier in modern logistics’ transportation, industrial full trailer is generally an unpowered vehicle towed by a powered machine. It is commonly used for the transport of heavy duty goods and materials in plant, warehouse, port, oil or mine field etc..
标准型工业平板拖车
标准型工业平板拖车是按照我公司所制定的配置标准生产的工业平板拖车，本身不附带其他功能结构。按其承载重量主要分为轻型、中型以及重型三类。
Nangong Standard Industrial Flatbed Full Trailer has divided into light duty, medium duty and heavy duty according to its loading capacity, but not attached any special configurations.
产品特点Product Features
1.使用国标高锰合金钢，车身加强筋密集，承载能力强，车架20年设计寿命；
2.采用知名品牌轮胎，弹性高，耐磨，质量更有保障；
3.转盘式回转机构，性能稳定，180度回转架，转弯半径转弯（原地转弯）；
4.高度可调缓冲式牵引机构，不同吨位的牵引头只需要简单调节即可连接；牵引架弹簧复位设计，有效减缓牵引架对车架的应力损伤，延长车身使用寿命；
5.悬浮式车架，与传统硬连接相比，减少车体长期应力损伤，使用寿命更长；
6.轮轴自动摆动调节式，凸凹地面保证板面水平且轮胎受力均衡；
1. Material of Chassis, 20 years’ designed service life, adopting the combination of GB high manganese alloy steel and highly dense reinforcing ribs to ensure large bearing capacity.
2. High quality tires collecting from famous supplier, promise a great performance with the advantage of higher elasticity, stronger wear-resistance and less maintain requirement.
3. Reliable turntable type steering system assembles 180°whirling stands, allowing small radius rotation.
4.Height adjustable buffering dragger helps to manual link different tractor conveniently. Meanwhile, patented designed of return spring effectively help to lessen the mechanical stress on the draw bar, extended the whole trailer’s service life.
5. New suspended bracket is another part for lessening mechanical stress on the whole trailer. Compared with traditional rigid joint, new version service longer period.
6. Automatic swing axle is adjustable and able to ensure cargo boarding in horizon and tires suffering same pressure on rough road.
标准配置Standard configuration
转盘式回转结构 实心/空心轮胎 缓冲式牵引架
Turntable type steering system Solid / Hollow tire Buffering dragger
悬浮式车架 锰合金钢车架 连接器及插销
Suspended bracket High manganese alloy steel frame Coupler and pin
轮轴自动摆动调节 防滑花纹板表面 自制标准车桥
Adjustable automatic swing axle Checkered plate Covered platform NanGong axle

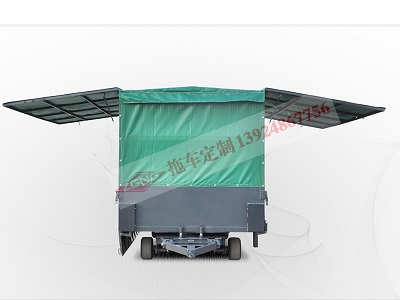

雨篷型平板拖车Tent Trailer
产品介绍 Product Introduction
雨篷型平板拖车主要针对户外作业而制，保护货物防水、防尘、防晒，尤其适用于对包装外部要求严格的产品运输。整体雨篷框架可拆卸，满足不同运货需要。
Tent trailer is mainly design for the outdoor operation, from rain, dust, UV,
产品特点 Product Features
1车顶及前后两端为固定式雨布或金属档板，两侧采用窗帘式活动雨布。
Fixed waterproof cloth or metal plate is setted at the front and rear parts, as well as the roof, while both side could be curtain type’s waterproof cloth.
2车身两侧雨布内侧各加装两条10公厘可调包胶钢丝绳，用于防止运输时货物侧滑，保证安全运输。
To ensure safe transportation and prevent cargo sliding when delivery, both side of the trailer inner equips with 2 adjustable 10mm long glue ropes.
