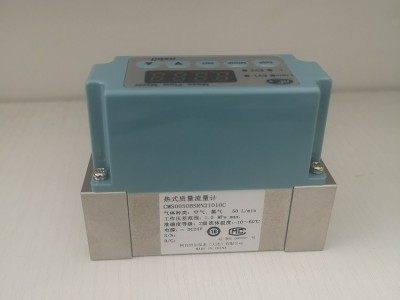

日本azbil山武CMS气体质量流量计
品牌：AZBIL/山武(成立于1906年)
型号：CMS系列
类型：气体质量流量计
测量范围：2ML-2000L/MIN（可选）
精度等级：±2%RD
适用介质：空气/氮气/氧气/氩气/氢气/氦气/氨气/二氧化碳/城市煤气13A/甲烷/丙烷/丁烷/乙炔（不含腐蚀性成分）
耐压：1.5MPa
工作温度：-10~+60℃
山武CMS是一种气体质量流量计，使用了山武公司研发的微流量传感器μF单元。这一传感器是一个芯片型感热式质量流量传感器，直接安装于流体管路中，可以测量低流速的流体流量，使CMS具有100:1的测量比。微流量传感器芯片与先进的流体管路设计的结合，使该仪表测量精度高、量程比大，且成本低。
特点：
1：由于采用直接质量流量测量，因此实现了不受温度、压力变动影响的准确测量；
2：实现了±2%RD的精度，0.5%FS的重复性、100:1的高量程能力；
3：CMS具有瞬时、累计流量显示、模拟输出、累计脉冲输出、事件输出2点、模拟输出定标功能以及RS-485通信功能；
4：采用山武公司的管内壁测量方式，实现了500PA（CMS200一次压力49KPA）的低压力损失。
★系统标价说明：尊敬的客户，由于山武每个系列的产品（如SDC35），都对应着多种不同的组合型号（如:C35TVDUA1000），而这些型号是需要根据你的技术要求来确定。同时，不同的型号的产品价格也是不同的，所以我们所标的价格只是这个系列产品的参考价格，仅供参考。如需要选型或者询价，可以直接联系我们。谢谢理解！联系人: 刘女士 联系手机:18117032675 联系Q Q:1036496642
山武CMS气体质量流量计型号一览
CMS0002BSRN20010C CMS0002BSRS20010C CMS0002BTSE21010C
CMS0002BTSN21010C CMS0002BTSS21010C CMS0002BTTE21010C
CMS0002BTTN21010C CMS0002BTTS21010C CMS0002BTUE21010C
CMS0002BTUN21010C CMS0002BTUS21010C CMS0002BTVE21010C
CMS0002BTVN21010C CMS0002BTVS21010C CMS0002RSRN20010C
CMS0002RSRS20010C CMS0002RTSE21010C CMS0002RTSN21010C
CMS0002RTSS21010C CMS0002RTTE21010C CMS0002RTTN21010C
CMS0002RTTS21010C CMS0002RTUE21010C CMS0002RTUN21010C
CMS0002RTUS21010C CMS0002RTVE21010C CMS0002RTVN21010C
CMS0002RTVS21010C CMS0005BSRN20010C CMS0005BSRS20010C
CMS0005BTSE21010C CMS0005BTSN21010C CMS0005BTSS21010C
CMS0005BTTE21010C CMS0005BTTN21010C CMS0005BTTS21010C
CMS0005BTUE21010C CMS0005BTUN21010C CMS0005BTUS21010C
CMS0005BTVE21010C CMS0005BTVN21010C CMS0005BTVS21010C
CMS0005RSRN20010C CMS0005RSRS20010C CMS0005RTSE21010C
CMS0005RTSN21010C CMS0005RTSS21010C CMS0005RTTE21010C
CMS0005RTTN21010C CMS0005RTTS21010C CMS0005RTUE21010C
CMS0005RTUN21010C CMS0005RTUS21010C CMS0005RTVE21010C
CMS0005RTVN21010C CMS0005RTVS21010C CMS0010BTSH21010C
CMS0010BTTH21010C CMS0010BTUH21010C CMS0010BTVH21010C
CMS0010RTSH21010C CMS0010RTTH21010C CMS0010RTUH21010C
CMS0010RTVH21010C CMS0020BSRN20010C CMS0020BSRS20010C
CMS0020BTSE21010C CMS0020BTSN21010C CMS0020BTSS21010C
CMS0020BTTE21010C CMS0020BTTN21010C CMS0020BTTS21010C
CMS0020BTUE21010C CMS0020BTUN21010C CMS0020BTUS21010C
CMS0020BTVE21010C CMS0020BTVN21010C CMS0020BTVS21010C
CMS0020RSRN20010C CMS0020RSRS20010C CMS0020RTSE21010C
CMS0020RTSN21010C CMS0020RTSS210
