Approvals:
Protection up to 125 metres. Can be used with GLHD-SS (dual head versions) as the first and last switches at the end of long conveyor runs.

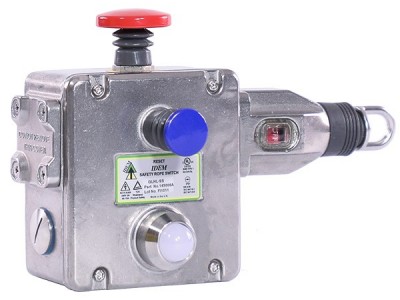

IDEM’s GLHL-SS is a robust heavy duty Safety Rope Pull Switch which is designed to protect long conveyor lengths where protection is required up to 125m (using 2 switches) or up to 100m where just one switch is required. Manufactured with a Stainless Steel 316 housing the GLHL-SS is designed specifically to withstand the tough production environments found in the Food and Pharmaceutical industries. They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by the use of integral bellows and gaskets.
They provide reliable, extremely cost-effective safety solutions for conveyor systems and can be enhanced by adding an external mushroom type E Stop at the switch or bi-colour LED to show switch status from a distance. They have 4NC 2NO contacts that ensure flexibility with all modern control applications and are available with optional Explosion Proof contact blocks.
A Low Temperature -40C version, GLHL-SS-FZ is also available
批准:
保护高达125米。
可以使用GLHD-SS(双头版本)作为好个和好后一个开关在长输送机运行结束。
IDEM的GLHL-SS是一个坚固的重型安全拉绳开关，设计用于保护较长的输送带长度，保护要求高达125米(使用2个开关)或高达100米，只需要一个开关。
GLHL-SS采用不锈钢316外壳制造，专门设计用于承受食品和制药行业的恶劣生产环境。
通过提供所有不锈钢部件和使用整体波纹管和垫圈的坚固IP67和IP69K密封，它们能够经受化学和洗涤剂的清洗。
他们为输送系统提供可靠的，极具成本效益的安全解决方案，并可以通过增加一个外部蘑菇型E停止开关或双色LED从远处显示开关状态来增强。
它们有4NC 2NO触点，确保所有现代控制应用的灵活性，并可选防爆触点块。
低温-40C版本，GLHL-SS-FZ也可用
