Approvals:
Protection up to 250 metres.

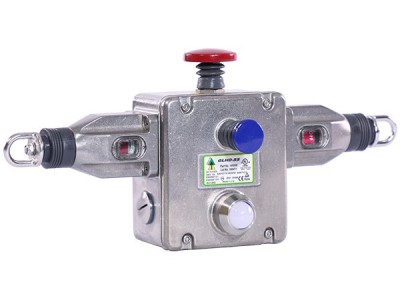

IDEM’s GLHD-SS Heavy Duty Safety Rope Pull Switch has been designed to protect long conveyor lengths. The Stainless Steel 316 housings have been designed and manufactured specifically to withstand the harsh environments that are found in the Food and Pharmaceutical industries. They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by the use of integral bellows and gaskets.
Lengths over 2Km can be achieved with less than 20 switches.
A bi-colour LED ensures switch status can be seen easily from a distance. They have 4NC 2NO contacts to ensure flexibility with all modern control applications and optional Explosion Proof contact blocks are available.
Shorter rope spans up to 200m can be achieved by using just one switch therefore making a cost effective solution and also reducing electrical wiring runs.
A Low Temperature -40C version (GLHD-SS-FZ) is also available.
批准:
保护高达250米。
IDEM的GLHD-SS重型安全拉绳开关的设计，以保护长输送长度。
不锈钢316外壳已经设计和制造专门承受恶劣的环境，发现在食品和制药行业。
通过提供所有不锈钢部件和使用整体波纹管和垫圈的坚固IP67和IP69K密封，它们能够经受化学和洗涤剂的清洗。
超过2Km的长度可以用不到20个开关实现。
双色LED确保开关状态可以很容易地从远处看到。
他们有4NC 2NO触点，以确保所有现代控制应用的灵活性和可选的防爆接触块。
只需使用一个开关，就可以实现更短的钢丝绳跨度，好长可达200米，因此是一种成本效益高的解决方案，也减少了电线的运行。
低温-40C版本(GLHD-SS-FZ)也可用。
