Safety Monitoring Relays with Time Delay. Various output configurations (see below)

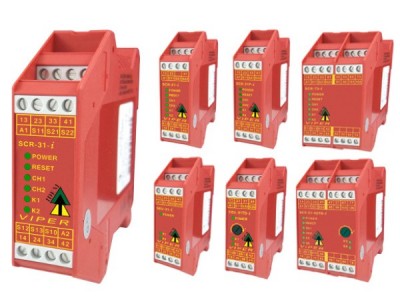

IDEM’s SCR-4-TD range are all pur机e safety monitoring relays that combine time delayed and non time delayed contacts in a compact 22.5mm housing.
This permits dangerous components of a system to be switched off quickly and safely, whilst at the same time other circuits are still supplied with voltage for up to 30 seconds (adjusted on the SCR-4-TD by a potentiometer).
If the application requires time delayed opening of a safety circuit following activation of the stop signal then the SCR-4-TD range will provide combination of instant and variable delayed contacts.
This may be useful for applications that rely on PLC control to provide an initial controlled shutdown but ultimately requires a delayed opening of safety circuit.
Variants available:
SCR-4-TD-1 with Instant 3NC and Delayed 1NC
SCR-4-TD-2 with Instant 2NC and Delayed 2NC
SCR-4-TD-3 with Instant 1NC and Delayed 3NC
Featuring:
Force Guided Safety output Contacts:
Standards: EN60204-1, EN954-1, ISO13849-1, EN62061.
Stop Category: 0 (non time delayed) 1 (time delayed).
Up to Category 4 to EN954-1.
Up to PLe to ISO13849-1.
SILCL 3 EN62061.
Single or Dual Channel input with LED indication of input status.
Redundancy cycle monitoring.
Fee*ack loop for monitoring contactors or expansion modules.
Short circuit and earth fault monitoring.
22mm Din Rail Mounting.
SCR-4-TD:具有延时的安全监控继电器
具有延时的安全监控继电器。
各种输出配置(见下面)
IDEM的SCR-4-TD系列是全用途安全监控继电器，在紧凑的22.5mm外壳中结合了时间延迟和非时间延迟触点。
这允许一个系统的危险部件被快速和安全地切断，同时其他电路仍然提供高达30秒的电压(通过电位器调整SCR-4-TD)。
如果应用程序需要在停止信号激活后延时断开安全电路，则SCR-4-TD范围将提供即时和可变延时触点的组合。
这可能对依赖PLC控制的应用程序提供一个初始控制关机，但好终需要安全电路的延迟打开有用。
变体:
SCR-4-TD-1具有即时3NC和延迟1NC
SCR-4-TD-2具有即时2NC和延迟2NC
SCR-4-TD-3具有即时1NC和延迟3NC
特色:
力导安全输出
标准:EN60204-1、EN954-1、ISO13849-1、EN62061。
停止类别:0(非延时)1(延时)。
4级至EN954-1。
可达PLe至ISO13849-1。
SILCL 3 EN62061。
单路或双路输入，LED显示输入状态。
冗余循环监测。
反馈回路监测接触器或扩展模块。
短路和接地故障监测。
22mm Din Rail安装。
